NTSC Video Using the 68HC908QY4


Jed Margolin



This project  was done for the Motorola Flash Innovation 2003 Contest run by Circuit Cellar Magazine (www.circuitcellar.com) and won one of the First Place Prizes.


The Motorola 68HC908QY4 is used to produce an NTSC video signal which can be used in several applications. By using 28.63636 MHz for the clock, the QY4 bus speed is 7.15909 MHz. which is twice the chroma frequency of 3.579545 MHz. The Interrupt Timer is used to generate an interrupt every 455 bus cycles resulting in an interrupt rate of 15.734 KHz. which is precisely the frequency of NTSC sync. Because interrupts that occur in the middle of a multi-cycle instruction are not recognized until the instruction is completed, the main line consists of a table of NOPs; all of the sync functions are performed during the interrupt, and the interrupt routine is returned to the start of the NOP table.

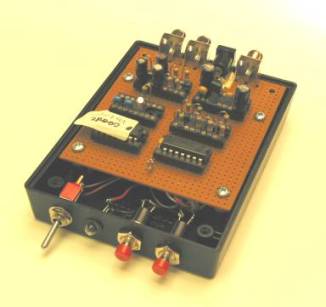

One application using the QY4 to produce NTSC sync is an NTSC Test Pattern Generator which produces simple test patterns in order to evaluate a TV's geometric distortion, high voltage regulation, and interlace quality.

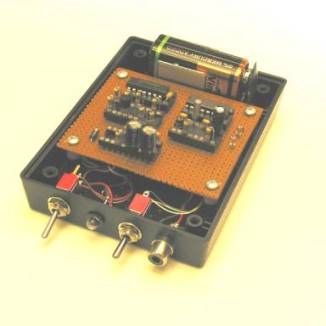

Another application is a VCR Pacifier to allow a VCR to record an audio-only signal such as from a radio. The VCR Pacifier also includes a real-time clock which is displayed either in video or by using the TV's closed captioned decoder. Low-bandwidth data from the 68HC908QY4's A/D inputs can be displayed the same way, turning the VCR into a two-channel data logger.

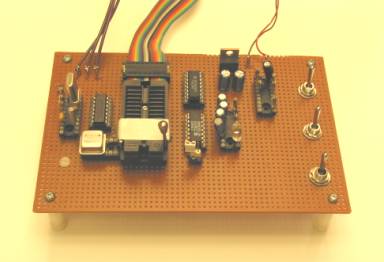

Since we will need to program the 68HC908QY4, a Programmer/Emulator is included at no extra charge.

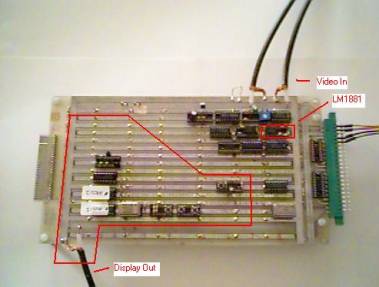

And as a bonus, a Video Line Trigger is presented which counts video lines from an external NTSC video source and produces a pulse to trigger an oscilloscope at the selected line(s). (This was built on a protoype board that already contained another project. The circuitry used in the Video Line Trigger is outlined in red. If you build it you can leave out the other stuff.)



The project is available in two forms:



HTML (Good for viewing online, contains active links)
Microsoft Word (Zipped with schematics, code, and references)

Jed Margolin
San Jose, CA
September 30, 2003
